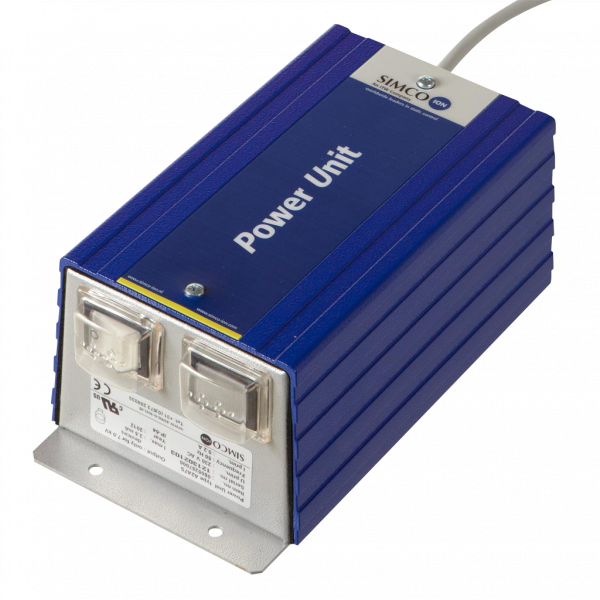

A_Unit-600x600

A Unit

High voltage supply



High voltage indication
Supplies up to 4 devices
Low power consumption
UL Certified



A Unit – High Voltage Supply

The A Unit has easy-access control and connections. It is equipped with an on/off switch with an indication light as well as a high-voltage indication light. Up to 4 static eliminators can be connected.

Features

  • Provides high-voltage to up to 4 ionising bars

  • Equipped with an on/off switch with an indication light
  • Equipped with a high-voltage indication light
  • UL approved
Housing material Aluminium and powdercoated steel
Weight 2,8 kg*
Connections 4
On/off switch with light Yes
High voltage indication Neon light
Cable
 1,8 m*
Ambient temperature 0 - 50 °C
Use circumstances Industrial
Protection classification IP-54
U primary 110 V or 230V*
Frequency 50 and/or 60 Hz*
Power consumption 50 or 100 Watt*
U secundary
 3,3 kV, 4 kV or 7kV AC*
I secundary 2,5 mA max.*
Option HR, D*
Approval UL*
 *Depending on the version
