The CM Tiny (IQ): the smallest industrial charging generator

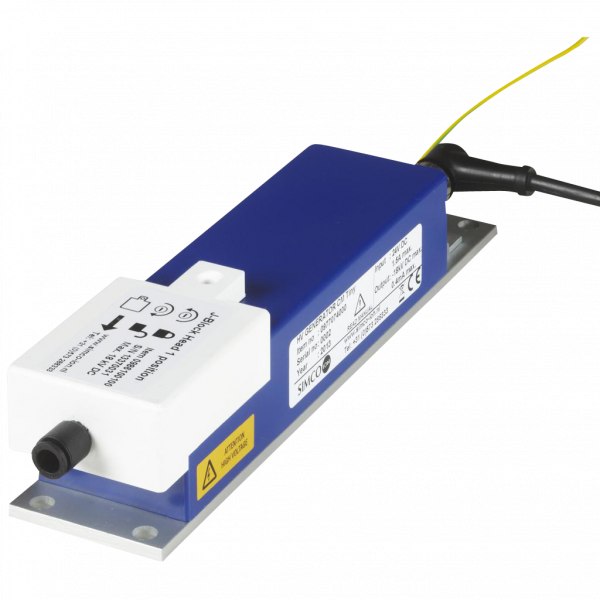

The CM Tiny (IQ) is the smallest industrial charging generator for static bonding applications. The unit has fully integrated high voltage parts and only needs a 24V DC supply. The housing is compact, robust and only weighs 500 grams which makes it perfect for small machines and applications with moving parts s.a. pick and place handling systems. It can easily withstand the high g-forces occurring during the process.
Two LED’s on the side give clear indications of the status of the charging generator;
- Green: Power is on
- Green flashing: Powers is on and HV output is inactive
- Red: Alarm, HV overload or HV OK signal short circuit
The CM Tiny (IQ) can be used directly from a machine interface capable of supplying a 4 - 20 mA signal for the setpoint and a 24V DC signal for remote on/off. Manual operation can be implemented by an additional control circuit. The control circuit enables you to mount a potentiometer and LED by simply providing 2 holes in the front panel of your machine interface. Connection blocks with one or four outputs are available. For the use of the quick connect ports, the charging electrode has to be equipped with a special connector.
There is a special version of the HDR bar available to connect with the CM Tiny (IQ).
