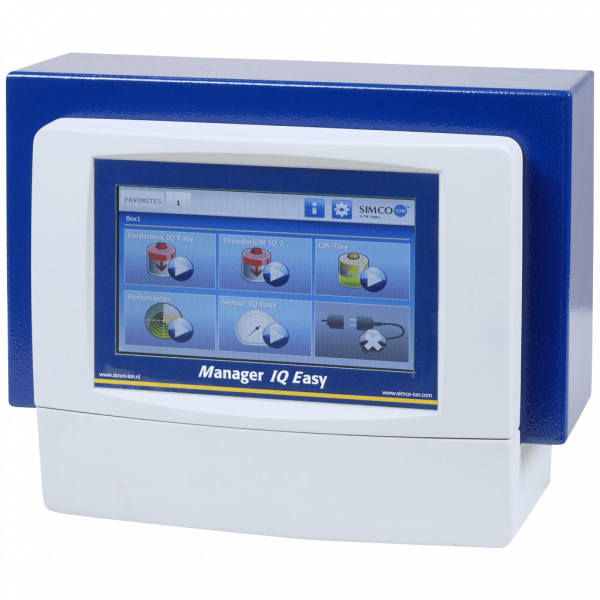

Manager IQ Easy: the heart of the IQ Easy Platform
Introducing a new level of static control; the heart of the new IQ Easy platform is the Manager IQ Easy. It contains a control unit with a 7'' LCD touch screen, provides information from all the connected devices and makes it easy to change and monitor status and parameters. Up to 6 IQ devices can be connected to the Manager IQ Easy. The 24V DC power distribution is routed via the Manager, so no extra cables. This makes the connection of a device even easier than connection to a single desktop power supply.
The Manager IQ is available in 2 versions:
- Input voltage 100 - 240V /50-60 Hz
This unit converts the input voltage to 24V DC and provides power to all 6 connected devices. - Input voltage 24V DC
This model needs a 24V power input provided by the user. Further extension of devices is possible using the Extension IQ Easy. Every Extension IQ Easy adds another 6 devices to the system, with a maximum of 30.
2 ports on each Manager or Extension are available for the connection of previous (non IQ) Easy products e.g. Performax Easy. Communication to machine interfaces is provided. Analogue and digital inputs, outputs and optional fieldbus protocols EtherNet IP of ProfiNet can be used. Also Ethernet and USB ports are available.
Features
-
7" full colour touchscreen
- Information is colour coded
- Controls up to 30 devices with extensions
- Connection up to 6 devices
- Analogue & digital inputs and outputs
- Serial fieldbus interfaces
- Ethernet interface
- USB interface
Supply voltage | 100 – 240 V AC nom. (90 – 305 V AC) |
24 V DC 3/+10% |
Frequency | 50 – 60 Hz nom. (47 – 63 Hz) |
Max power consumption | 300 W (100 – 240 V AC version) |
360 W (@15 A) (24 V DC version) |
Purpose
|
Industrial |
Protection class | IP52 |
Operating temperature | 0 – 55 °C |
Installation | Free of dust and vibration |
Device output 100-240 V AC version | 24 V DC 3 A max. per port, total max. 9 A |
Device output 24 V DC version | 24 V DC 3 A max. per port, total max. 13 A |
Machine I/O |
Digital inputs
|
10-30 V 25 mA max. |
Analog input | 0-10 V 0,6 mA / 0- 20 mA / 4- 20 mA |
Digital outputs | OE/OC 24 V DC nom. Max. 30V 25 mA |
USB | 3x USB 2.0 |
Ethernet | 1x RJ45 8-pin connector |
Fieldbus (optional) | 1x Anybus interface |
Weight | 5,5 kg (100 – 240 V AC version) |
3,9 kg (24 V DC version) |
Product Drawing:
- ManagerIQEasy_PD_10300000_GB.pdf
- Safety Option
- Panel Cut Out
- Mounting Holes Manager Extension
- Overview Connections - Extension
