Barrier Box

Barrier Box

Located outside the ATEX zone.



Connected to the IQ Easy Platform
Located outside the ATEX zone
1, 2, 3 or 4 sensor segments

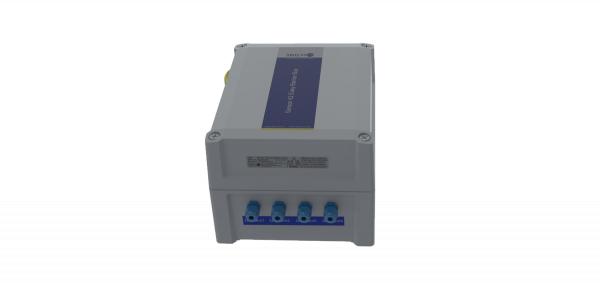

Barrier Box – Efficient Static Neutralization

The Barrier box is connected to the IQ Easy platform and is located outside the ATEX zone. The Barrier Box can be ordered with configurations for 1, 2, 3 or 4 sensor segments. The Barrier Box connects the IQ Easy platform with a standard Male/Female M12 cable. The Barrier Box is required for decoupling and current limitation when connecting a Sensor IQ easy 2.0 EX.





Dimensions:
Width 190 mm
Height 150 mm
Depth 240 mm
Housing material ABS/PC
Sensor segment connections 1, 2, 3 or 4
Connector
 M12
Weight 3 kg
Ambient temperature 0 - 40°C
Use circumstances Industrial, outside ATEX zone
Input power 24 DC, via M12 connector
Indication Multicolor LED's

Product Drawing:
Product Specifications:
User Manuals:
  • This file is not available on our website at the moment. Please contact cs@simco-ion.nl for further assistance.



Receive a 3D drawing

Enter your name and e-mail address to receive a 3D drawing by mail (STEP-file) of this product.
