Cobra-600x600

Cobra

Heavy duty ionising airgun



Lightweight
High airflow
Round and flat air flow
Airflow control with trigger

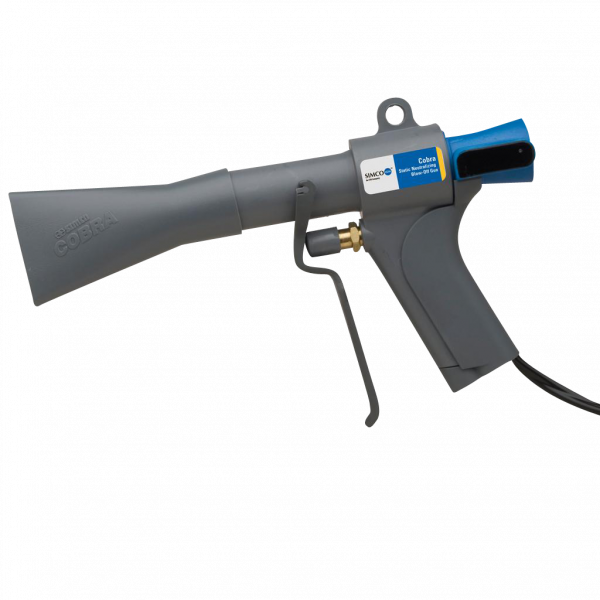

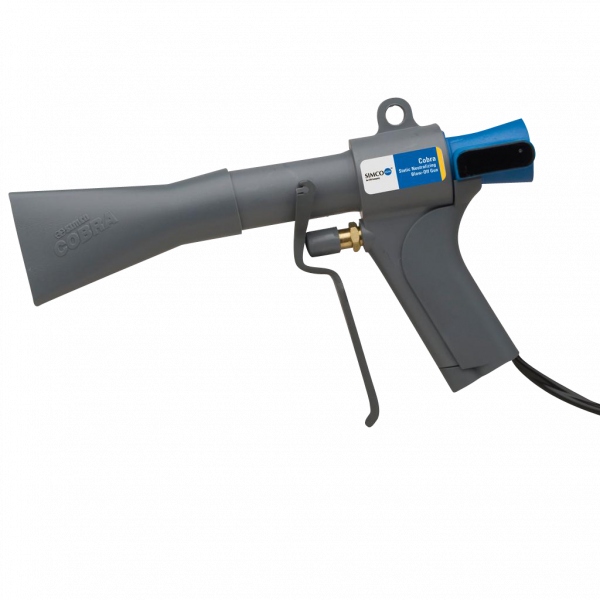

Cobra - Heavy Duty Ionising Airgun

The Cobra ionising air gun is suited for heavy-duty industrial applications. It has a lightweight, durable gun body made of high-impact plastic. The airflow is controlled by the trigger. The air flow is amplified by a minimum factor of 6 : 1 by drawing in ambient air through the rear. The high-voltage point integrated aerodynamically in the gun body cleans itself during use. The gun comes standard with 6 metres of cable. A maximum of two guns can be connected to a single power unit.

Features

  • Working distance: up to 600 mm

  • 6 metre cable included, 12 metre cable also possible
  • Ideal for heavy-duty industrial applications
  • Emitter pin is cleaned during use
Working distance Up to 600 mm
Housing material Impact resistant plastic
Emitter pin Special alloy
Cable PVC and PE, 6 or 12 metres
Weight 0,6 kg incl. 6 metre cable
Ambient temperature
 0 - 55 °C
Use circumstances Industrial
Operating voltage 5,1 kV AC
Noise level 95 dB using 2 bar at 60 cm distance
Air consumption 200 l/min. using 2 bar
Max. pressure 7 bar
Airconnection 1/4” BSP, hose min. 9 mm inside
Suitable power unit
 A2A5G

Product Drawing:
Product Specifications:
User Manuals:

Can't find the file you're looking for? Please contact cs@simco-ion.nl for further assistance.

Receive a 3D drawing

Enter your name and e-mail address to receive a 3D drawing by mail (STEP-file) of this product.
