Top Gun III
Light industrial air gun
Lightweight | |
Airfilter | |
Flowcontrol valve | |
Surface cleaning |

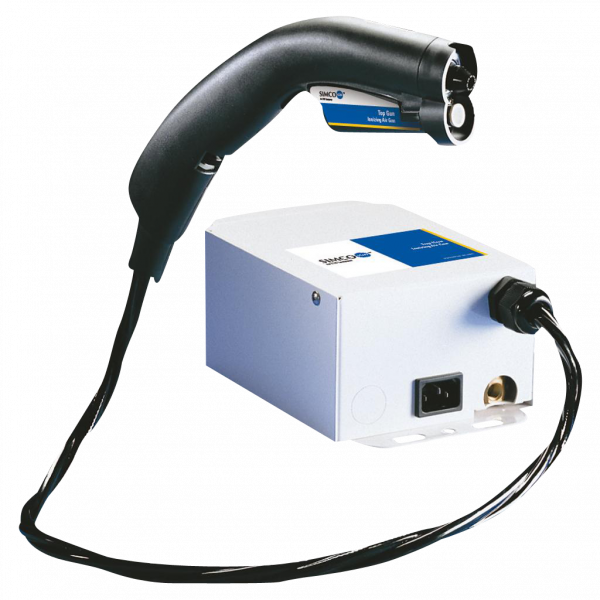

Top Gun III - Light Industrial Air Gun
Simco-ION's Top Gun III is developed for light industrial applications. A high ion delivery ensures an optimal neutralisation of static charges. High blow-off force and low air consumption provide high-efficiency cleaning. A filter at the exit of the gun ensures that the air is clean. The gun body is lightweight and durable. It features a light-touch trigger, making it comfortable for extensive use.
Functionality is built into the gun, including a flow control valve, and a two-level LED which indicates if the gun is in ''standby'' mode and an indication whether high voltage is currently active. Both the gun and cable are electrostatically dissipative. A hanger is provided for easy mounting. One Top Gun can be connected to one power unit.
Top Gun Sidekick
The Top Gun Sidekick offers handsfree operation. A foot pedal controls both ionisation and airflow. The Top Gun Sidekick includes a mount with a bracket for flexible positioning.
Features
-
Working distance: up to 300 mm
- 3 metre cable
- Suitable for light industrial applications
- A filter at the exit of the Top Gun ensures that the air is clean
- Two level LED which indicates if the gun is in “stand by” mode and whether high voltage is currently active
- A hanger to hang the gun is provided
Working distance | Up to 300 mm |
Housing material | Impact resistant plastic |
Ionisation point | Special alloy |
Cable | Electrostatically dissipative, 3 metres |
Weight | 0,8 kg incl. 3 metre cable |
Ambient temperature
|
0 - 40 °C |
Use circumstances | Light industrial |
Operating voltage | 5 kV AC |
Noise level | 76 dB using 2 bar at 60 cm distance |
Air consumption | 68 l/min. using 2 bar |
Max. pressure | 7 bar |
Airconnection | 1/8” NPT female |
Suitable power unit
|
Top Gun III power unit |
Airfilter | 0,01 micron |
