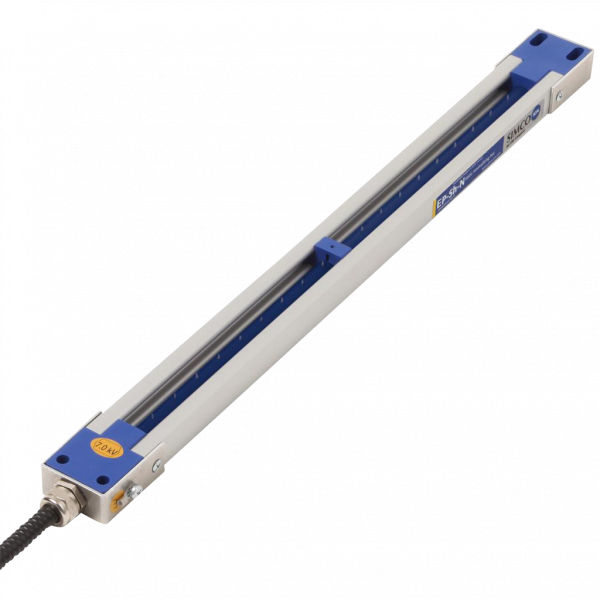

EP-Sh-N-600x600

EP-SH-N

Long Range Neutralization.



Shockproof touchable emitters
Open structure
Medium working distance: up to 150 mm
Length up to 6 metres



EP-SH-N – Long Range Neutralization

Simco-Ion anti-static bars are also available for applications requiring long range neutralisation. These anti-static bars are shockless; each emitter pin is coupled capacitively to the high voltage.

Each individual emitter pin of this anti-static bar is coupled capacitively to the high voltage. You will not get an electrical shock when the emitter pin is accidentally touched. Another advantage is that the bar continues to function properly when a number of emitter pins are short-circuited, for instance due to heavy fouling.

Features

  • Medium working distance: up to 150 mm
  • Shockproof touchable emitters
  • The bar continues to function properly when a number of emitter pins are short-circuited, for instance due to heavy fouling.



Working distance Up to 150 mm

Housing material Anodised aluminium

Inner bar material PVC

Emitter pins Special alloy

Cable Metal shielded

Weight
0,5 kg/m

Ambient temperature 0 – 55 °C

Use circumstances Industrial

Operating voltage 7 kV AC

Options Right angle cable exit

Suitable power unit A2A7S / MPM

Approval UL



Product Drawing:
Product Specifications:
User Manuals:
