Air Knife + MEB

Neutralise static with air



Working distance up to 1000mm
Surface cleaning
Length up to 2 metres
UL Certified

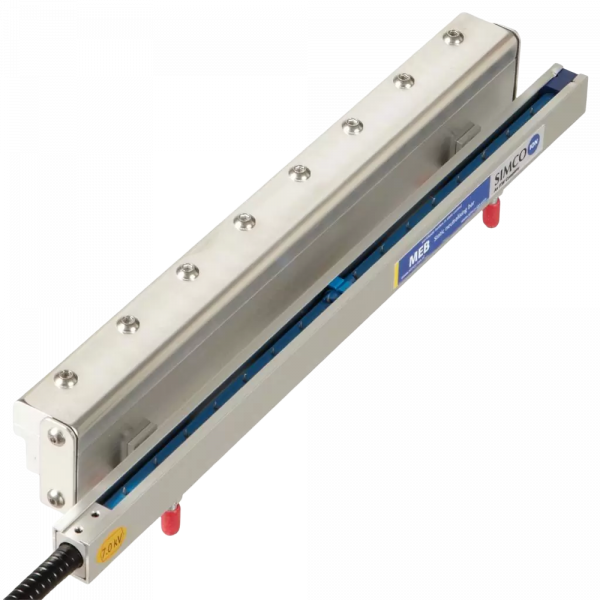

Anti-static Air Knife + MEB Ionising Bar – Neutralise static with air

A type MEB shockproof anti-static bar combined with an air knife comes in standard lengths. The compressed air is blown across the high-voltage points over the entire width and amplified by the ambient air carried along. The airflow is saturated by the positive and negative ions produced by the anti-static bar. The air flow neutralises the static charge, enabling any contamination to be easily blown away.

Features

  • Working distance: Up to 1000 mm

  • Removes dust and other contaminations and neutralises the static charge so dust is not attracted again
  • Shockproof touchable emitters
Working distance Up to 1000 mm

Working width Standard lengths: 76, 150, 310, 460 or 610 mm

  Lengths up to 2000 mm on request

Housing material Aluminium

Inner bar material PVC

Emitter pins
Special alloy

Cable Metal shielded

Weight 3 kg/m

Ambient temperature 0 - 55 °C

Use circumstances Industrial

Operating voltage 7 kV AC

Air consumption On request

Pressure
Max. 10 bar

Airconnection 1/4” BSP

Option Airfilter

Suitable power unit A2A7S/MPM

Approval UL



Product Drawing:
Product Specifications:
User Manuals:

Can't find the file you're looking for? Please contact cs@simco-ion.nl for further assistance.

Receive a 3D drawing

Enter your name and e-mail address to receive a 3D drawing by mail (STEP-file) of this product.
