1/2" SS

Super Service anti-static bars



High Temperature
Chemical Resistance
Short Range
Length up to 6 metres

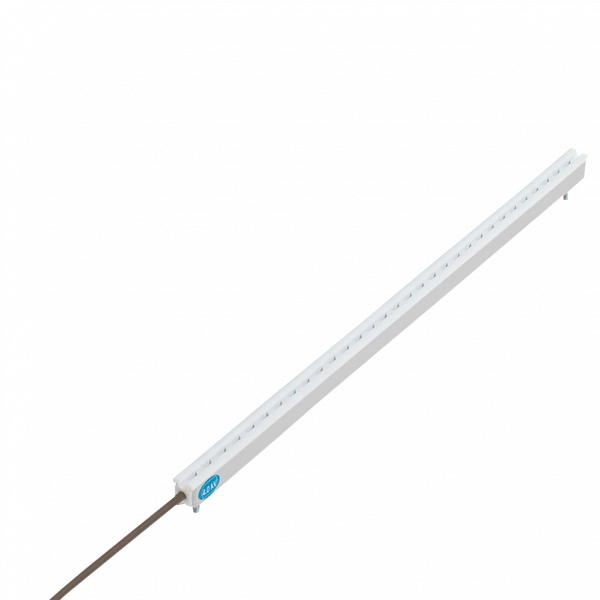

1/2" SS - Super Service anti-static bars

The emitter pins of the Super Service anti-static bars are directly coupled to the high voltage so that maximum ionising current is reached.


These bars can be cleaned easily and are suited for being installed in places which may be subject to heavy fouling. Touching an emitter pin will cause an unpleasant electrical shock. These bars are usually installed in such a manner that the emitter pins cannot be touched by personnel.

Features

  • Short working distance: Up to 30 mm
  • Optimal neutralisation because the emitter pins are directly coupled to the high voltage
  • Is suited for being installed in places which may be subject to heavy fouling
  • Heat and chemical resistant
  • Compact
Working distance 30 mm

Housing material Anodised aluminium

Inner bar material PTFE

Emitter pins Special alloy

Cable High voltage cable

Weight
0,56 kg/m

Ambient temperature 150 °C with special cable

Use circumstances Industrial

Operating voltage 4 kV AC

Options Right angle cable exit

Suitable power unit A2A4S / MPM

Approval UL


Product Drawing:
Product Specifications:

Regular:

1/2SS with PTFE cable

1/2SS" with Silicone cable
