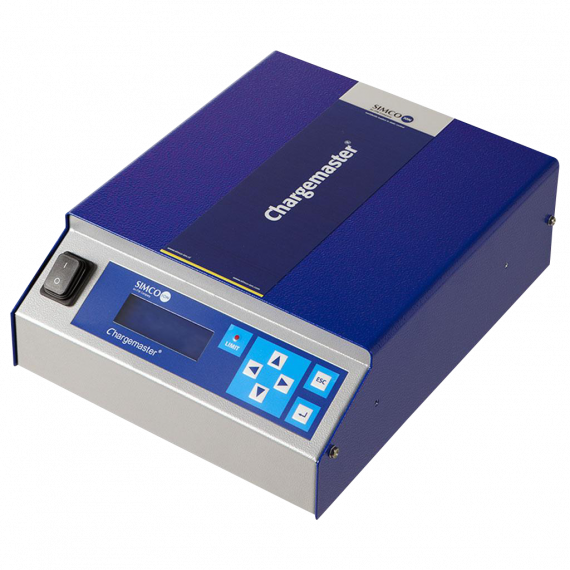

ChargeMaster CM5-60 - Advanced Current Control

The CM5-60 is a more powerful variant of the CM5-30.

Advanced current control is a revolutionary new feature. The generator keeps track of the supplied current to the electrode. It senses when there is no material to be charged and lowers the current to a safe level. This prevents spark-over and emitter pin wear. When material is reinserted the current will switch back to the needed current level.
A serial bus interface can be fitted additionally to enable the generator to communicate through serial bus interfaces, like Profibus or CANopen (other serial protocol available on request). Advanced output control is also offered as an option for specific applications. This function provides output control that is proportional to the input signal. The level of charging can be proportional to the speed of the machine.

CM5 is backwards compatible with the ECM30/60 and the ECM DI30/60.

A quick set-up menu is provided to set-up the generator to function as an ECM30/60. The menu is available in English, German, French and Italian.

The new standard function "current control" will enable you to set a constant current vs a constant voltage. This will provide a much more stable charging and will compensate contamination and emitter pin wear automatically.
