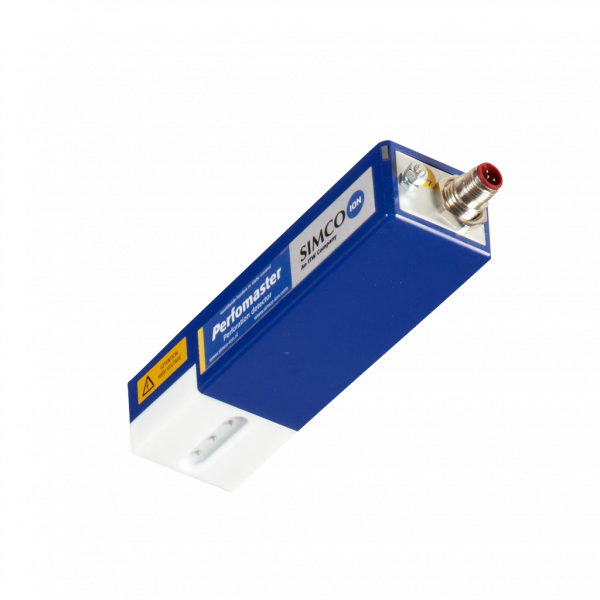

Perfomaster – Efficient Perforation Detection
The Perfomaster provides the hardware and software to generate a controlled spark over, detect this and evaluate the spark over to produce a pulse signal. The pulse signal is available on the output connector and can be used for counting the detected spark-overs and thus perforations.
The miniaturised design of the Perfomaster contains the electrode as well as the high voltage source. It is powered by 24 V DC, so no high voltage cable is required. Electrodes are standard fitted with three special alloy emitter pins and are detachable for replacement or remote placement.
A status signal LED provides direct system information on the Perfomaster.
- A green LED signals operation OK.
- An intermittent red LED signals a perforation detected.
Supply voltage and output voltage setting to the Perfomaster can be provided in two ways:
1) directly form the machine f.e. PLC
2) with additional external control kit
