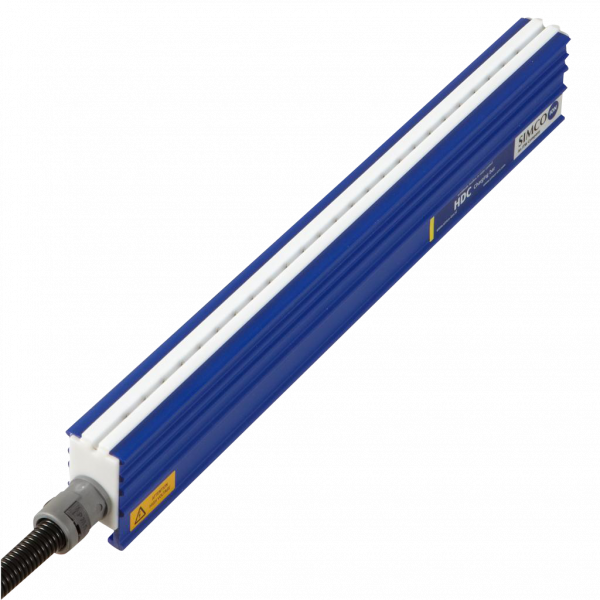

HD-Det-600x600

HD DET

High performance with optimal control.



Resistance per Emitter
LED indication
Max 25 Hz detection frequency
IP 54 Protection Class



HD DET

In order to detect perforations in a moving material web, this special electrode is equipped with a resistance per emitter. When a perforation passes the electrode, there will occur a controlled spark over. This is detected by the associated CM5 high voltage generator and is communicated with an output signal and the flashing of the red LED.

Features

  • Detection of perforations over a large area
  • Detection of very small perforations possible



Working distance Max. 5mm
Housing ABS/PTFE
Cable low voltage cable, standard M12 connector
Input power 24 V DC, <0,5 A
Emitter pins special alloy
Max detection frequency 25 Hz
Signal
 Multicolour LED:
  -Green: signal ''operation OK''
  -Red: signal perforation detected
Signal output Optocoupler
Control voltage 0-10 V of 0-24 V
Ambient temperature 0 - 55°C
Use circumstances Industrial
Protection classification IP 54

Compatible power unit  ECM Lite, CM5-30
