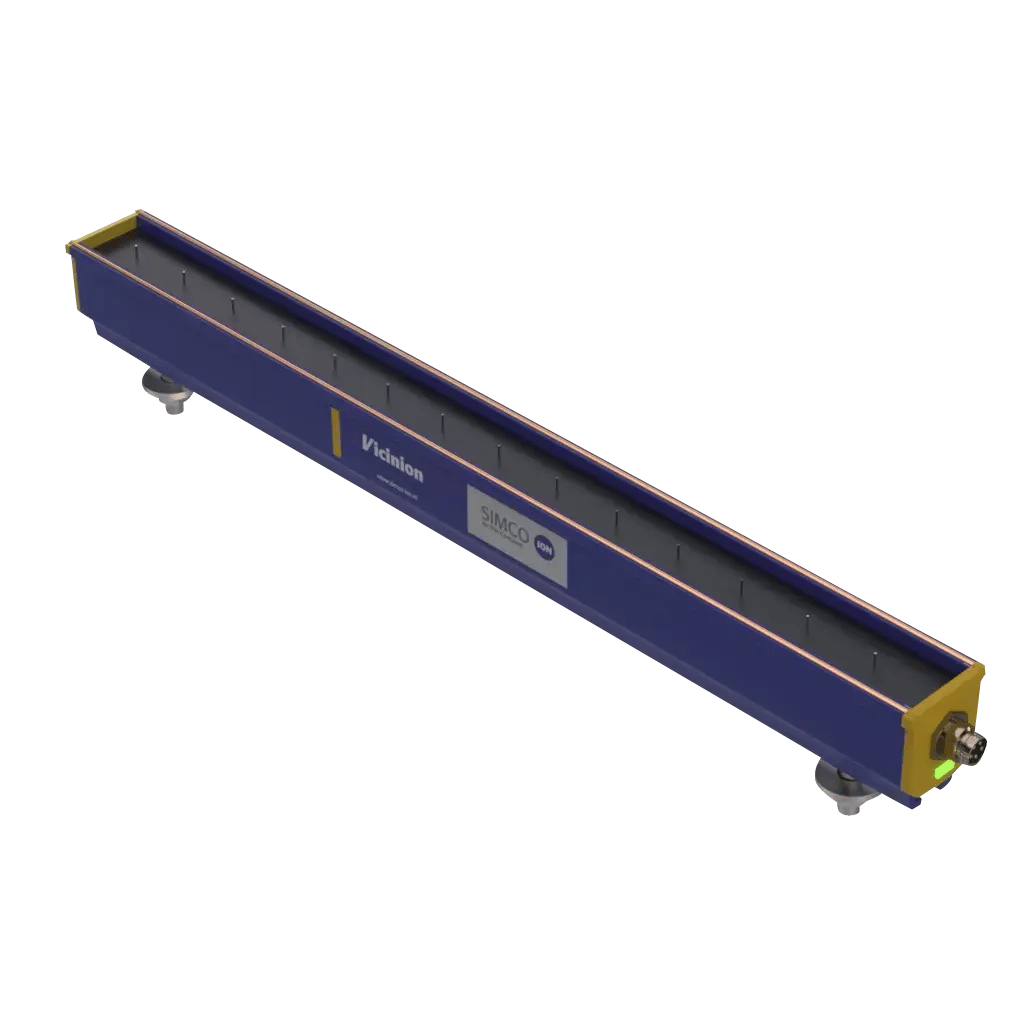

VicinION_totaal

VicinION IQ

Neutralise surfaces



24V DC supply voltage
Compact and IQ compatible
LED indicator
IP 66 Protection Class



VicinION – Neutralise surfaces

The VicinION IQ is an anti-static bar designed to neutralize electrostatically charged surfaces. The bar is equipped with an integrated high-voltage power supply, emitters and a status LED and is supplied with a 24V DC power supply via an M8 connector. The VicinION IQ is best suited for distances between 5 and 75 mm from the material. This bar is IQ compatible, enabling full static control with our IQ Manager.

Features

  • Incorporated high voltage power supply, input voltage 24V DC
  • Short range ionisation: 5 - 75mm
  • Standard M8 connector
  • Designed for industrial use and easy cleaning - protection classification IP66
  • Shockless touchable emitter



Working distance 5 - 75 mm
Housing material Plastic
Emitter pins Special alloy
Cable Low voltage cable
Connector M8-connector, 5-pole
Weight
 700 g/m
Ambient temperature 0 – 55 °C
Use circumstances Industrial
U primary 24 V DC, <0,2 A
Protection classification IP66
Suitable power unit Integrated, 24V DC voltage input
Indication 2-colour LED green/red
IO signals
 Remote on/off 10-30 V DC
Mounting material M4 x 15 mm sliding bolt
Inputs
Remote on/off 10 – 30 V (Ri >10k)
Switched on time 30 ms
Outputs:
Output voltage Max. 8 kV positive and negative
Current per emitter to ground Max. 120 μA
High Voltage OK (HV OK) Supply Voltage -1 V. Max. 50 mA
Option 5-wire cable with M8-connector, 5 metres
  5-wire cable, M12 - M8, 2 metres
