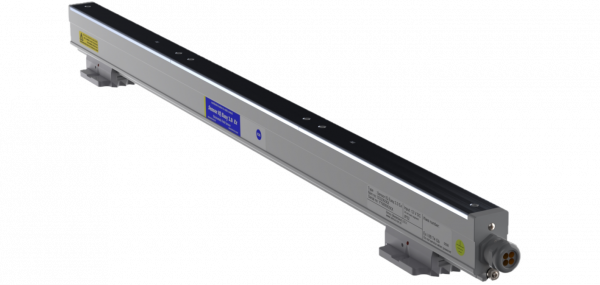

Sensor IQ Easy 2.0 EX

Measuring the electrostatic charge



Full web width static charge monitoring
Up to 16 sensors
ATEX-certified
48 possible measurement locations (with sensor bar 6070 mm)



Sensor IQ Easy 2.0 EX

A sensor that measures the electrostatic charge of a web inside a hazardous environment (ATEX) can be added to the IQ Easy platform. The Sensor IQ Easy 2.0 EX is a bar type device that can contain up to 8 sensor segments. Each sensor segment can be placed on a strategical position across the web to monitor the electrostatic charge. All data of each sensor head is communicated to the Manager IQ Easy and stored for process monitoring. Warnings and alarms can be set to warn operators for situation that may turn critical.

Features

  • Full web width charge monitoring
  • Up to 16 sensors
  • ATEX Certified
  • 48 possible measurement locations (with sensor bar 6070 mm)





Working distance 10 - 300 mm
Housing material Aluminium
Cable Low voltage 15 m
Connector No connector, direct cable
Weight 2 kg/m
Ambient temperature
 0 - 40 °C
Use circumstances Industrial, ATEX zone
Input power 24 V DC
Measuring range 0 - 30 kV @ 50 mm
  0 - 50 kV @ 100 mm
  0 - 80 kV @ 300 mm
Accuracy <100 mm 10%
  >100 mm 20%
Sampling rate 50 ms

Product Drawing:
Product Specifications:
