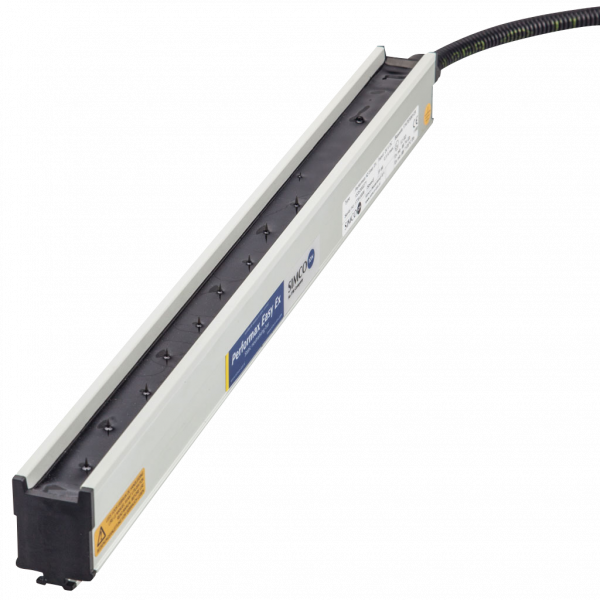

Performax IQ Easy EX
For environments with explosion hazards
24V DC supply voltage | |
Aluminium housing | |
ATEX Certified | |
IP66 |
Performax IQ Easy EX –For environments with explosion hazards
Compact high efficient static neutralising within explosion hazardous environments (ATEX). The Performax IQ Easy EX has an integrated high voltage power supply and requires only a low voltage input of 24V DC. A two colour bright LED visualises bar ON (green) or bar FAULT (red). The Performax IQ Easy EX bar has IP66 protection, which allows easy cleaning. The aluminium profile offers a very rugged structure, even up to 3 metres. Universal mounting brackets are supplied for various mounting options.
Performax IQ Easy EX anti-static bars are available in two variations:
1) Standard - for all applications, with a working distance between 100 and 300 mm
2) Speed - for high speed applications and for a working distance between 50 and 300 mm
Features
-
Incorporated high voltage power supply, input voltage 24V DC
- Minimal risk of deflection and deformation of the anti-static bar due to robust aluminium profile
- Designed for industrial use and easy cleaning - IP66 protection
- Universal mounting brackets
- No HV cable in EX Area
- Complies to the latest standards
- IQ version available
- LED
- Atex II 2 GD
EX mb IIB T4 Gb
EX mb IIB T135 °C Db
Working distance | Performax IQ Easy Ex: 100 - 300 mm |
Performax IQ Easy Ex speed: 50 - 300 mm |
Housing material | Aluminium/PA6/PUR |
Emitter pins | Tungsten |
Cable | Low voltage cable |
Weight | 2,2 kg/m |
Ambient temperature | 0 – 40 °C |
Use circumstances | Industrial |
U Primary | 24 V DC, <0,5 A |
Protection classification | IP66 |
Suitable power unit | Integrated, 24V DC voltage input |
Indication
|
Bright LED green/red |
Signalling: |
Green continuous | In operation |
Green flashing | Standby |
Red continuous | Overloaded |
Red flashing | HV OK overloaded |
I/O Signals | Serial communication with the Manager IQ Easy Power via Manager IQ Easy |
Options | Desktop power supply (100-240 V / 24 V) |
Din rail power supply (100-240 V / 24 V) |
Approval |
Atex II 2 GD |
EX mb IIB T4 Gb |
|
EX mb IIIB T135 °C Db |
Product Drawing:
- Universal Bracket PD
- Performax IQ Easy Ex System Overview PD
- Protective Hose PD
- Speed Installation PD
- Status Module PD
- Cable Version PD
