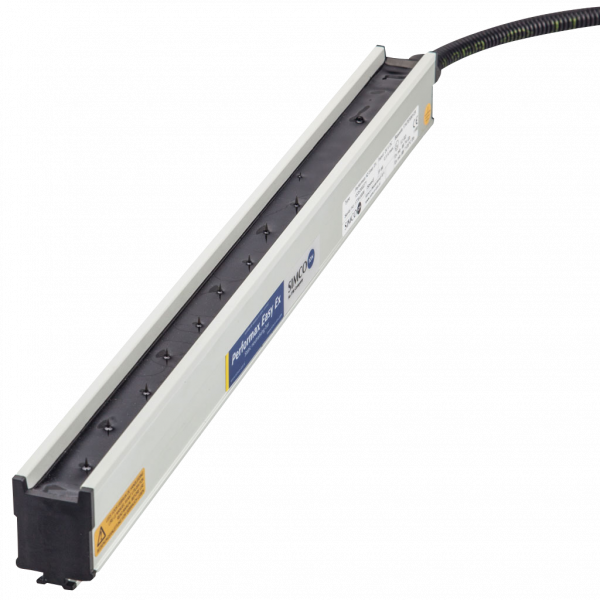

Performax Easy Ex

For environments with explosion hazards



24V DC supply voltage
ATEX Certified
Aluminium housing
IP 66 Protection Class



Performax Easy EX – For environments with explosion hazards

Compact high efficient static neutralising within explosion hazardous environments (ATEX zones).

The Performax Easy Ex has an integrated high voltage power supply and requires only a low voltage input of 24V DC. A two colour bright LED visualises bar ON (green) or bar FAULT (red). Additional wires for remote on/off contact are available as well as a signal indicating high voltage O.K. The Performax Easy Ex bar has protection classification IP66 which allows easy cleaning. The aluminium profile offers a sturdy construction, even up to 3 metres. Universal mounting brackets are supplied for various mounting options.

Performax Easy Ex anti-static bars are available in two variations:

1) Standard, for all applications, with a working distance between 100 and 300 mm

2) Speed, for high speed applications with a working distance between 50 and 300 mm

Features

  • Incorporated high voltage power supply, input voltage 24V DC

  • Minimal risk of deflection and deformation of the anti-static bar due to robust aluminium profile
  • Designed for industrial use and easy cleaning through IP66 protection
  • Universal mounting brackets
  • No HV cable in Ex Area
  • Complies to the latest standards
  • IQ version available
  • Atex II 2 GD
  • EX mb IIB T4 Gb
  • EX mb IIB T135 °C Db
Working distance Performax Easy Ex: 100 - 300 mm
  Performax Easy Ex speed: 50 - 300 mm

Housing material Aluminium/PA6/PUR
Emitter pins Tungsten
Cable
 Low voltage cable
Weight 2,2 kg/m
Ambient temperature 0 - 40 °C
Use circumstances Industrial
U Primary 24 V DC, <0,5 A
Protection classification IP66
Suitable power unit Integrated, 24V DC voltage input
Indication
 Bright LED green/red
Signalling:
Green continuous In operating
Green flashing Standby
Red continuous Overload
Red flashing HV OK overload
I/O Signals Remote on/off; 10 - 30V DC
  High Voltage OK; Supply voltage - 1V. Max. 50 mA
Options Desktop power supply (100-240 V / 24 V)
  Din rail power supply (100-240 V / 24 V)
Approval Atex II 2 GD
  EX mb IIB T4 Gb
  EX mb IIIB T135 °C Db
