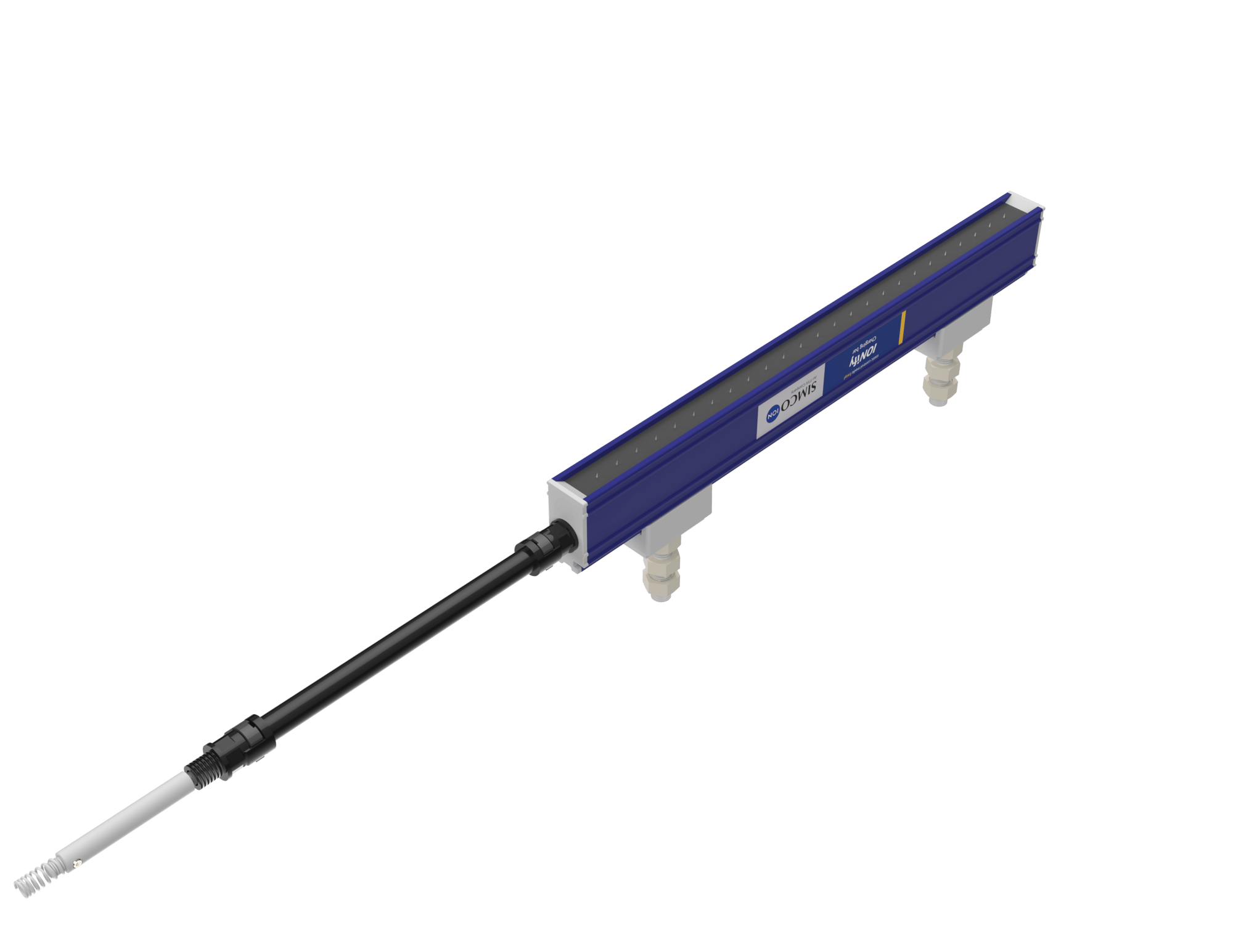

IONify
Our next-generation charging bar




Tungsten emitter points

Cable exit straight or right-angled (90°)

Robust, IP66 housing

Easy mounting



IONify - Static Charging Bar

A static charging system consists of a high-voltage generator, an electrode (charging bar/applicator) and cabling. The generator supplies the high voltage needed to create a static charge, typically from 3 to 60 kV. Charging electrodes come in different shapes and sizes to achieve the best result for each application.

Static charging systems are used to:

  • Bond two materials together

  • Prevent air inclusion during production

  • Optimize a step in the production process



IONify is our next-generation charging bar. Building on the field-proven HDC and HDR designs, IONify adds increased robustness and safety: tungsten emitters for long life and an enlarged resistor network to strongly reduce the chance of spark-over and avoid interruptions in machine control. The rear mounting slot allows quick, precise installation, and the cable exit can be straight or right-angled (90°).



Features

  • Charging bar

  • Working distance: 20 mm using <30 kV, 75 mm using 30–60 kV

  • Tungsten emitters for durability

  • Enlarged resistor network for improved safety (spark-over risk strongly reduced)

  • Robust PA housing, IP66

  • Suitable for a wide variety of industrial applications

  • Optional right-angle cable exit





Working distance
20 mm using <30 kV; 75 mm using 30-60 kV

Effective length 87,5-5900 mm

Operating voltage 0-60 kV DC

Current 75 µA (@ 30 kV)

Emitters Tungsten

Case material
PA

Protection class IP66

Cable
High-voltage cable with PA protective sleeve

Ambient temperature 0 – 55 °C

Relative humidity Max. 90%, non-condensing

Use circumstances Industrial, indoor

Weight 90%, non-condensing

Options Right-angle (90°) cable exit

Suitable Power unit CM Lite, CM5




Please contact cs@simco-ion.nl for further assistance.
